FAQ. Whats that hole at the back of the aircraft?

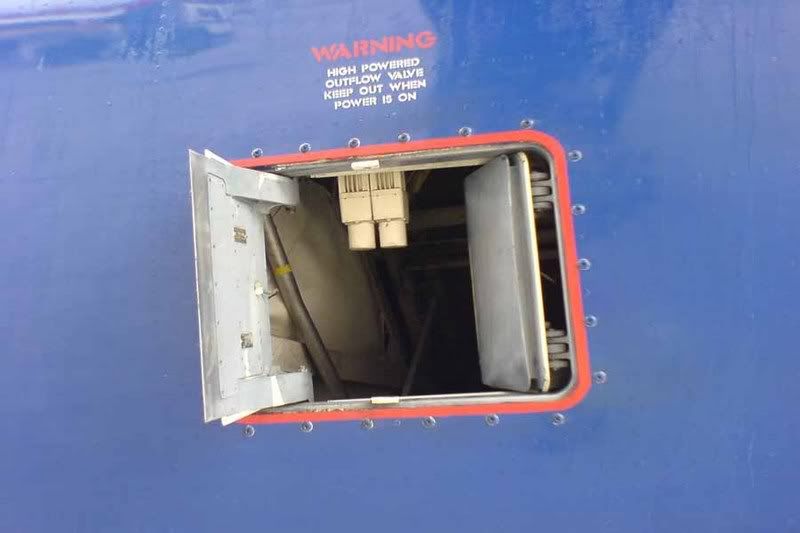

It’s the outflow valve,
http://i101.photobucket.com/albums/m63/Cking507/DSC00168.jpg
It contols the cabin presurization by modulating the rate at wich the pressurized cabin air is released from the aircraft. It is controlled by two pressurization controlers.
http://i101.photobucket.com/albums/m63/Cking507/DSC00242.jpg

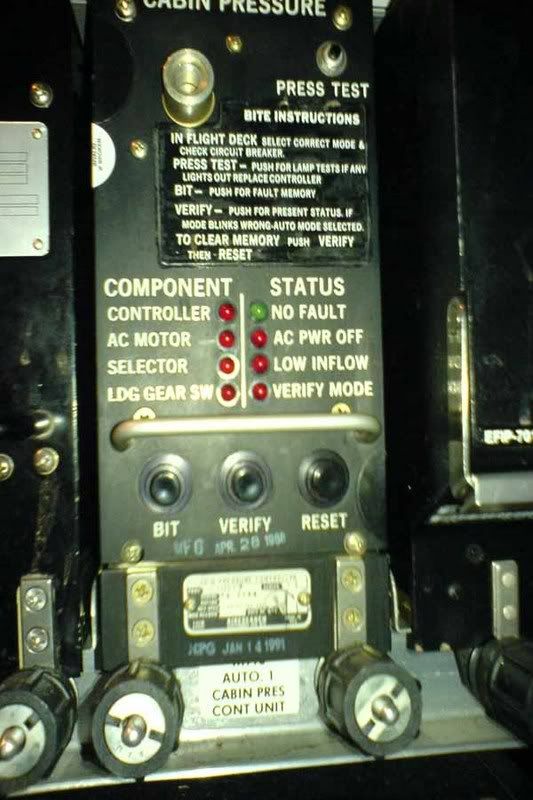

This is selected from the pressurization control panel in the flight deck
http://i101.photobucket.com/albums/m63/Cking507/DSC00162.jpg

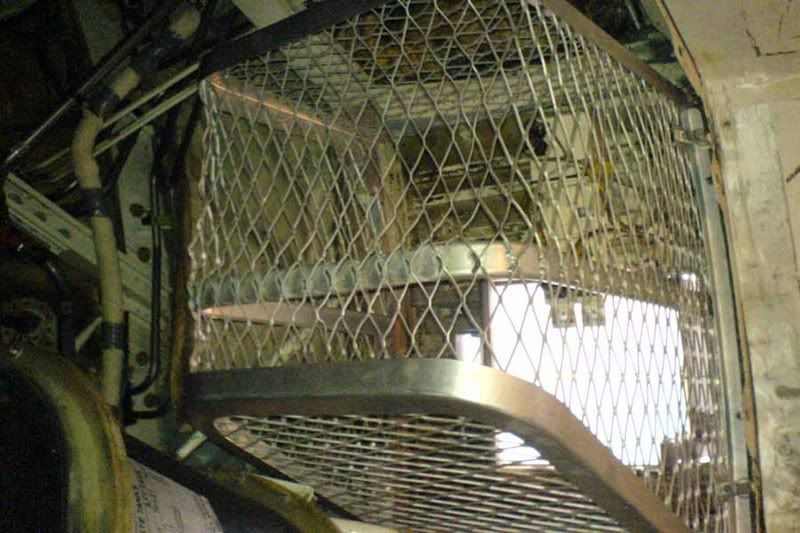

Hear is the outflow valve from the inside, it’s behind the rear freight bay wall
http://i101.photobucket.com/albums/m63/Cking507/DSC00270.jpg

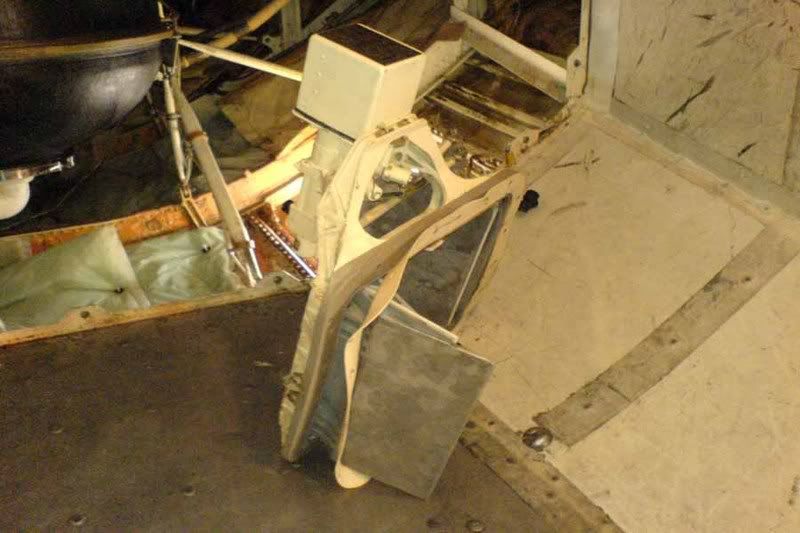

And hear it is removed.
http://i101.photobucket.com/albums/m63/Cking507/DSC00273.jpg
(Three electrical plugs, one bonding lead and twenty two bolts)
Now that’s what I did at the weekend!

Rgds Cking

Member for:

19 years 1 month

Posts:

77

Send private message

By: paul the wall - 27th September 2006 at 19:24

Thanks Cking that was actually quite interesting.

Member for:

19 years 1 month

Posts:

4,836

Send private message

By: Manston Airport - 27th September 2006 at 18:12

Was this some sort of course?

James
