PA474, BBMF Lancaster update at day 80

A few more photographs of PA474 at week 17 as she progresses through her major maintenance. It is still going to plan and should be out and about by mid April.
Previous photographs at
http://forum.keypublishing.co.uk/showthread.php?t=66623&highlight=pa474

BBMF Info at http://www.bbmf.co.uk/news.html

http://i130.photobucket.com/albums/p274/rum_monster/lhs-1.jpg

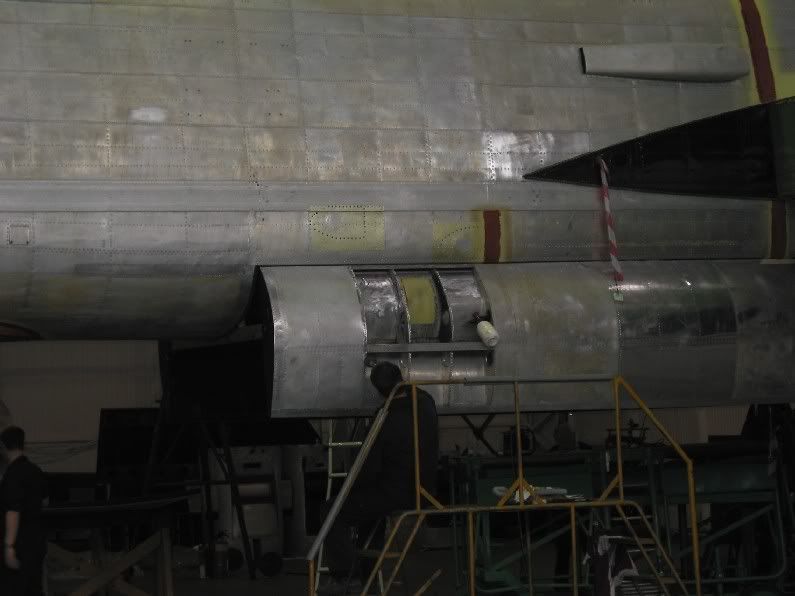

Another skin repair on the bomb bay
http://i130.photobucket.com/albums/p274/rum_monster/bbd.jpg

Nose
http://i130.photobucket.com/albums/p274/rum_monster/frontSM.jpg

Wing tip back on
http://i130.photobucket.com/albums/p274/rum_monster/wingtipSM.jpg

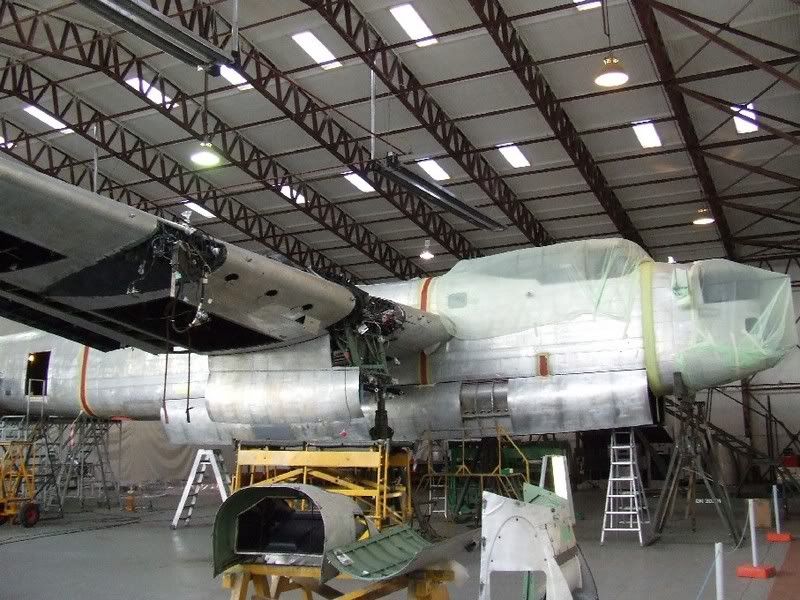

Side view
http://i130.photobucket.com/albums/p274/rum_monster/SideSM.jpg

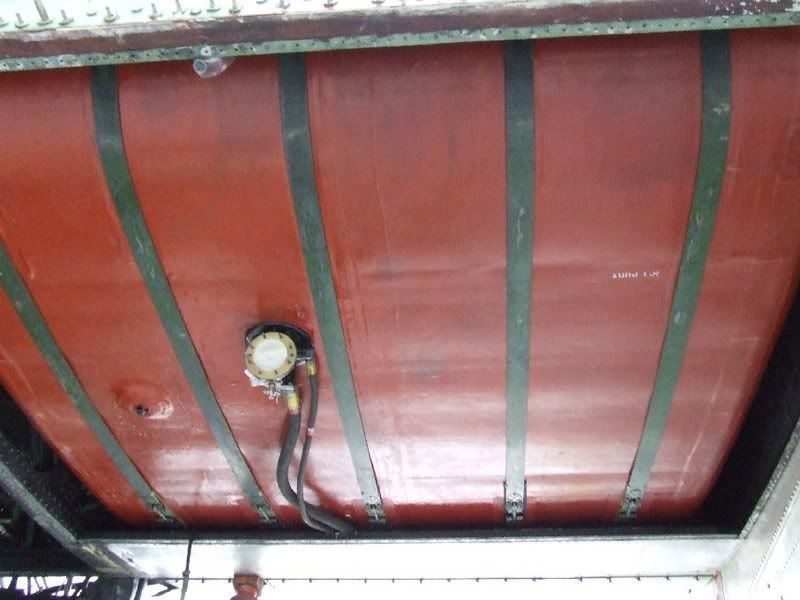

Fuel tank in place
http://i130.photobucket.com/albums/p274/rum_monster/fueltankSM.jpg

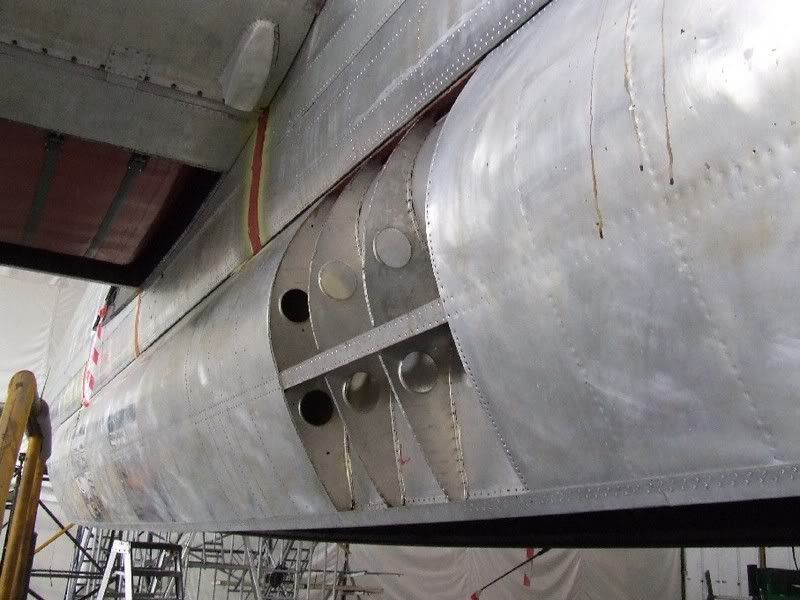

Bomb Bay door skin to be replaced
http://i130.photobucket.com/albums/p274/rum_monster/bomdoorSM.jpg

Fins on
http://i130.photobucket.com/albums/p274/rum_monster/backSM.jpg

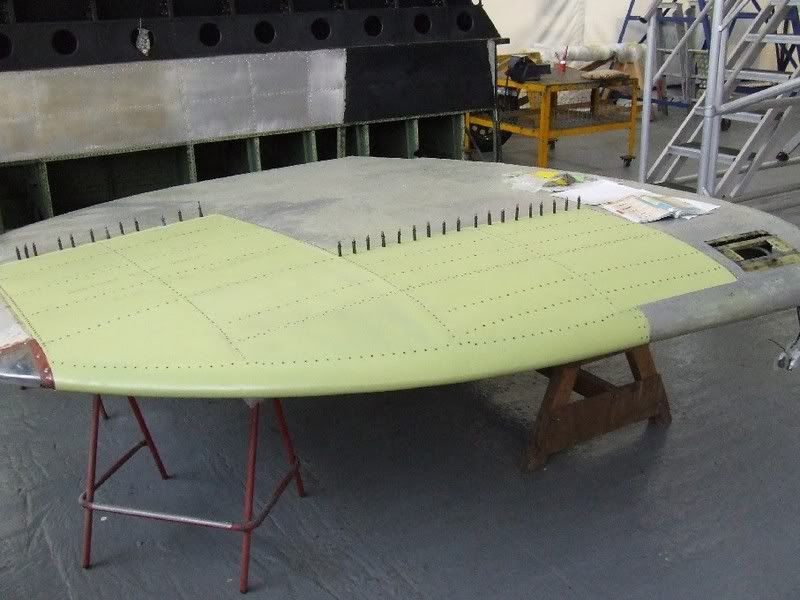

Wingtip skin repair
http://i130.photobucket.com/albums/p274/rum_monster/wingtip_repair.jpg

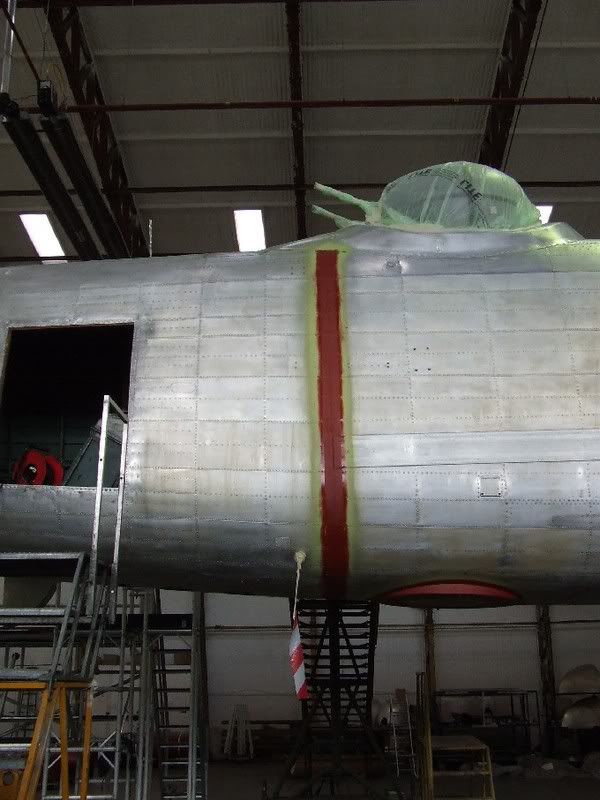

Fuselage break point fabric applied
http://i130.photobucket.com/albums/p274/rum_monster/split-1.jpg

Fin back on
http://i130.photobucket.com/albums/p274/rum_monster/fin3.jpg

Bomb bay door skin replacement. An APU used to be fitted in the bomb bay. The steel strengthening plate was removed and skin replaced.
http://i130.photobucket.com/albums/p274/rum_monster/bombdoorrepair.jpg

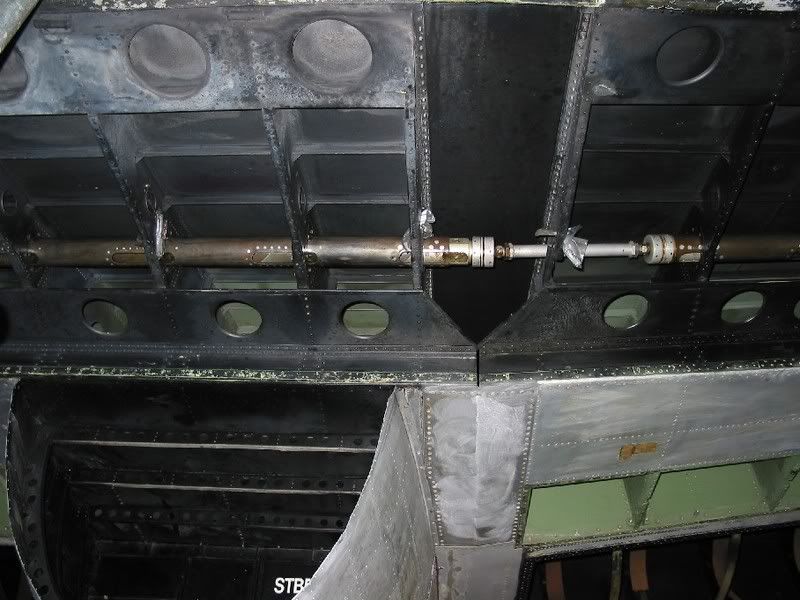

The flap control tubes which need to be replaced due to cracking and corrosion.
http://i130.photobucket.com/albums/p274/rum_monster/Flapcontroltubes.jpg

The control rods after removal from the aircraft.
http://i130.photobucket.com/albums/p274/rum_monster/rods.jpg

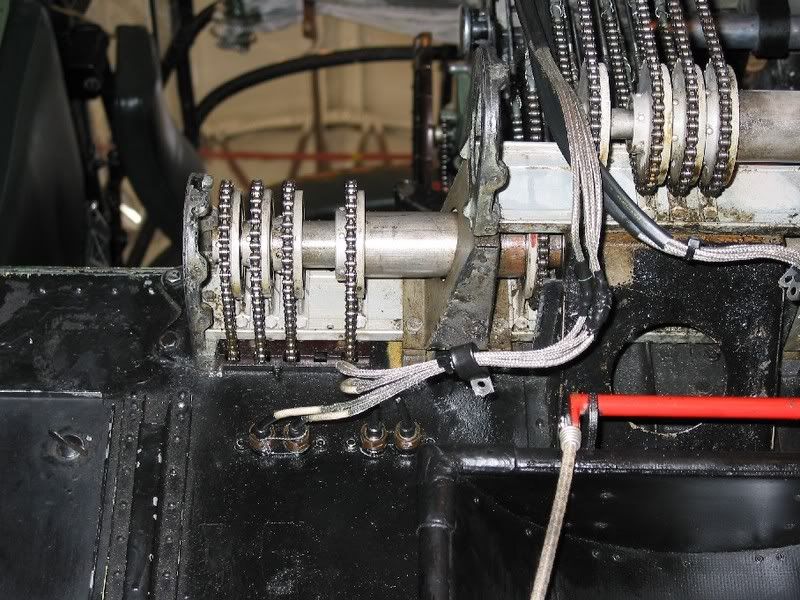

The engine control mechanism
http://i130.photobucket.com/albums/p274/rum_monster/ecucontrol.jpg

Member for:

19 years 1 month

Posts:

85

Send private message

By: jackattack - 1st February 2007 at 18:11

So how long do we have to wait before the repainting commences on PA474 at Coventry?

Most of the aircraft should be back together by the end of this month. The engines are being delivered next week. We are waiting on the manufacture of the flap tubes. This is the critical path as the painting won’t take place until the flap tubes are in and the wing has been reassembled. This is scheduled for the end March, beginning April and will take approx 10 days.

Member for:

19 years 1 month

Posts:

2,462

Send private message

By: ALBERT ROSS - 1st February 2007 at 09:55

So how long do we have to wait before the repainting commences on PA474 at Coventry?

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 31st January 2007 at 20:36

Nuts, and I wondered about that too, but couldn’t get it right between my head/the manual!

I consider myself suitably educated. 😀

Member for:

19 years 1 month

Posts:

519

Send private message

By: Fluffy - 31st January 2007 at 20:35

It’s the inside of the bomb door!

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 29th January 2007 at 22:26

Do I get put out of my baffled misery re. the mystery photo yet? Huh huh huh? Pretty please?! :confused:

Member for:

19 years 1 month

Posts:

68

Send private message

By: Ghostrider 01 - 28th January 2007 at 15:23

Its the 1/48 Tamiya kit which was brought out in the 70’s

I have two unmade ones in the loft!
Steve 🙂

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 28th January 2007 at 10:19

Ah yes, I’ve built a few of those in my time! Still a great kit, especialy for it’s age, if you can find/afford one!

Now if only it was as easy to paint PA474 as ‘Sugar’… 😀

Member for:

19 years 1 month

Posts:

519

Send private message

By: Fluffy - 27th January 2007 at 19:27

Its the 1/48 Tamiya kit which was brought out in the 70’s

Member for:

19 years 1 month

Posts:

68

Send private message

By: Ghostrider 01 - 27th January 2007 at 19:19

One of my choices for the new PA474 scheme, this was turned down when the boss realised Lou was my wife’s name:( , the other was Grogs the Shot a 100sqn a/c. No guess on the piccy yet where are all the Lanc experts :diablo:

Looks good. What make and scale is the kit?
Steve 🙂

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 26th January 2007 at 22:31

LOL well if it took even you a while Fluffy, then I’ve got no chance!

Member for:

19 years 1 month

Posts:

519

Send private message

By: Fluffy - 26th January 2007 at 21:46

Sorry wrong answer, it took me a while to get it right I think Stormin’ is being a bit of a :dev2:

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 26th January 2007 at 21:17

No guess on the piccy yet where are all the Lanc experts

I made a guess earlier! Wondered if that big hole was an area where the flap tubes passed through?

Member for:

19 years 1 month

Posts:

611

Send private message

By: alanl - 26th January 2007 at 20:16

Quote for pic 3….
‘What do you reckon Ben? A tenner (or should it be ‘Ten Pounds’ in offcifer speak!) says he’ll trip on his way out the door!’ :diablo:

Alan.

Member for:

19 years 1 month

Posts:

519

Send private message

By: Fluffy - 26th January 2007 at 19:47

One of my choices for the new PA474 scheme, this was turned down when the boss realised Lou was my wife’s name:( , the other was Grogs the Shot a 100sqn a/c. No guess on the piccy yet where are all the Lanc experts :diablo:

Member for:

19 years 1 month

Posts:

419

Send private message

By: Manc - 26th January 2007 at 18:39

Nice pics and links there, grat journo!

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 26th January 2007 at 18:30

Thats coz he’s put them on first page!!!!!!!!

So he did! :rolleyes: Found, and appreciated. 😀

Member for:

19 years 1 month

Posts:

2,569

Send private message

By: BlueRobin - 26th January 2007 at 18:02

I too caught the piece on the lunchtime news today, and it is now up on the BBC news website: 🙂

http://news.bbc.co.uk/1/hi/uk/default.stm

Cheers

Paul

For reference, here the video

Member for:

19 years 1 month

Posts:

222

Send private message

By: Stormin' - 26th January 2007 at 16:14

Thats coz he’s put them on first page!!!!!!!!

Member for:

19 years 1 month

Posts:

2,275

Send private message

By: Bluebird Mike - 26th January 2007 at 15:54

Erm, there’s no photies..?

Member for:

19 years 1 month

Posts:

85

Send private message

By: jackattack - 26th January 2007 at 15:50

More photographs added

A few more snaps from week 17.
