Hey guys.Needing the two top mounts that join the Spitfires seat to the main framework behind it.One is a solid bracket and the other a turnbuckle.Did have some great sketches of them but were lost when “borrowed” to a new volunteer who didn,t stay long.:(
By: QldSpitty - 21st May 2010 at 02:28
So far…
Top mounts are here..One is a solid part,the other is the same dimensions but a turnbuckle.Havent added threads etc but enough for a start.:D Also will have to measure up a hole that is on the seat.
By: AndyG - 19th May 2010 at 00:56
The exploded views and MTOs in the Swedish parts maunuals are also very illuminating.
By: TonyT - 18th May 2010 at 23:50

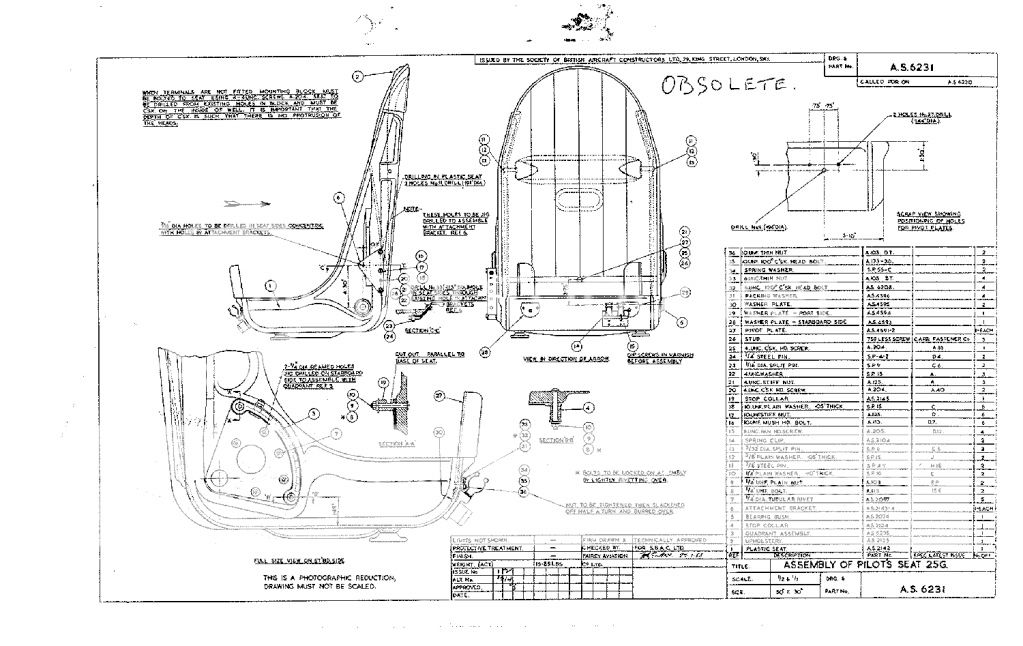

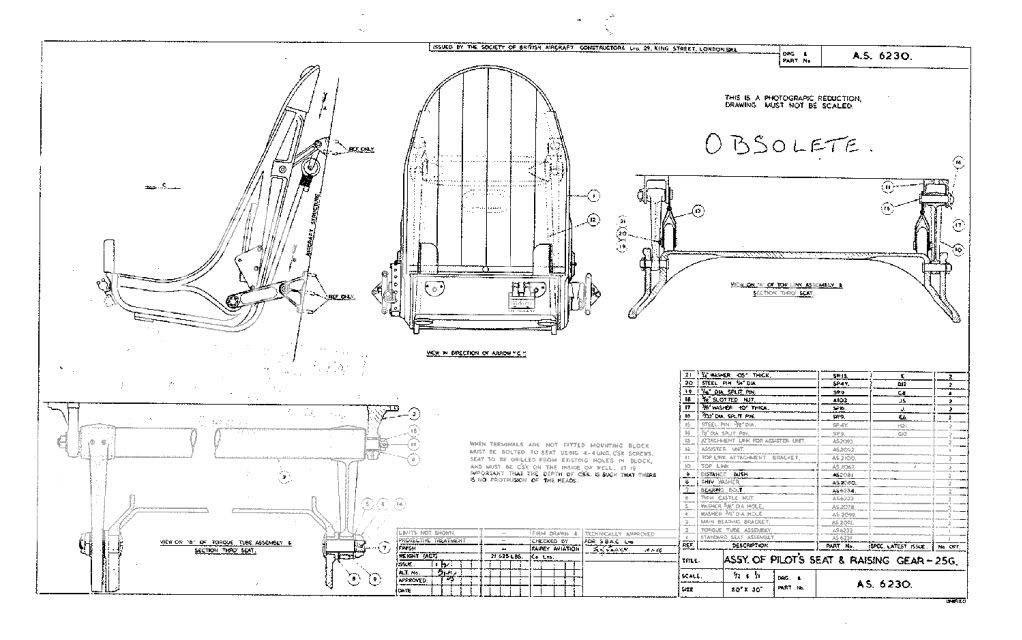

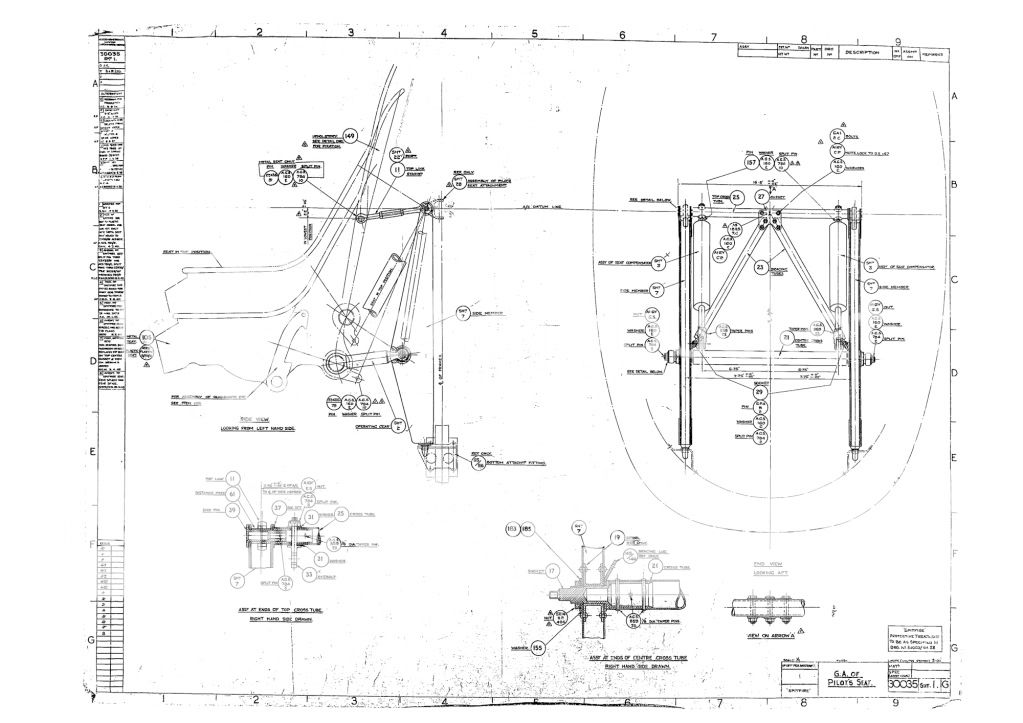

Spitty, the drawings are reduced in size PM me an email addy and I will send you via yousendit.com the bigger versions……………… thanks for the kind comments everyone 🙂
By: QldSpitty - 18th May 2010 at 23:37
Replies don`t come much better than that..gret pics and info…………
I agree,am humbled by such an answer..Thank you will give us a headstart at least…
Just thought I’d add, good job with the 3D Spitfires blog, I keep checking back once in a while to see if you’ve added anything.
Yes time for an update I think.
By: keithnewsome - 18th May 2010 at 23:28
I have to say, (knowing nothing of what you people are talking about) but how very nice is that post by TonyT … This helps to restore my faith in humanity ! thank you Sir !
Keith.
By: Rocketeer - 18th May 2010 at 23:15
Many thanx Tony T!
By: hindenburg - 18th May 2010 at 23:03
Replies don`t come much better than that..gret pics and info…………
By: TonyT - 18th May 2010 at 22:46
Hows that for a reply? :p
By: ThreeSpool - 18th May 2010 at 13:12
QldSpitty – Just thought I’d add, good job with the 3D Spitfires blog, I keep checking back once in a while to see if you’ve added anything. 🙂
By: QldSpitty - 18th May 2010 at 11:24
Any news on my tanks?
We still have it mate.Couple of new volunteers have started so might get some spare manpower.Odd to think that it is hard to get ‘someone” to work on a real Spitfire. 🙁
Hows your baby going?
By: Rocketeer - 18th May 2010 at 08:50
can I have some pix too please Mike!!!
By: Firebex - 17th May 2010 at 22:53
Hi havent got any drawings but I will take some pictures of the one in the workshop this week and PM them for you.
By: oscar duck - 17th May 2010 at 13:02
I might be able to help. Any news on my tanks?
