Taiwan's Tuo Jiang Class Corvette

[ATTACH=CONFIG]235489[/ATTACH]

Source: http://slide.mil.news.sina.com.cn/h/slide_8_213_31902.html/d/1#p=1

It seems like there is a lot of wasted space at the aft of this ship. Why didn’t they make the ship a little longer and use that space for a landing pad? Does anyone know if there are plans to use this space in the future for a SAM system, a towed array sonar system, drones, or anything??

Member for:

19 years 1 month

Posts:

407

Send private message

By: J33Nelson - 24th February 2015 at 00:58

So this ship can operate a MD-500MD/ASW helicopter from the aft position. Can the ship refuel the helicopter or is it just a landing pad? Does the ROCN have any plans to replace the ageing MD-500 fleet with a new naval helicopter or a drone like the MQ-8B?

Member for:

19 years 1 month

Posts:

544

Send private message

By: Jinan - 23rd February 2015 at 18:54

MD-500 Defender
Length: 23 ft 0 in (7.01 m)
Rotor diameter: 26 ft 4 in (8.03 m)
Height: 8 ft 6 in (2.59 m)
Disc area: 544.63 ft² (50.60 m²)

Armament
four TOW anti-tank missiles, or two 7.62mm General Electric M134 Miniguns plus ammuntion, or four General Dynamics Stinger air-to-air missile, or
Mk 44 or Mk 46 lightweight torpedoes (ASW Version), or two seven-shot rocket pods

Sea Hawk
Length: 64 ft 8 in (19.75 m)
Rotor diameter: 53 ft 8 in (16.35 m)
Height: 17 ft 2 in (5.2 m)
Disc area: 2,262 ft² (210 m²)

Member for:

19 years 1 month

Posts:

544

Send private message

By: Jinan - 23rd February 2015 at 18:43

[ATTACH=CONFIG]235489[/ATTACH]

Source: http://slide.mil.news.sina.com.cn/h/slide_8_213_31902.html/d/1#p=1

It seems like there is a lot of wasted space at the aft of this ship. Why didn’t they make the ship a little longer and use that space for a landing pad? Does anyone know if there are plans to use this space in the future for a SAM system, a towed array sonar system, drones, or anything??

ROC Navy aviation:
Sikorsky S-70C(M)-1/2 Thunderhawk (SH-60 Seahawk) United States SAR ASW Naval utility helicopter 19 Out of 10+11 ordered
Hughes 500MD/ASW Defender United States ASW Naval utility helicopter 9 Out of original 13 ordered

In any case, the rear deck can serve Vertrep. “Obviously”, if working with a helicopter on deck, it is to work with Defende rather than Sea Hawk. Although I can’t see what the Defender would add (or Sea Hawk, for that matter)

http://upload.wikimedia.org/wikipedia/commons/4/40/USS_Rodney_M._Davis_%28FFG_60%29_Full.jpg

http://cfile6.uf.tistory.com/image/222598365459DF25197501

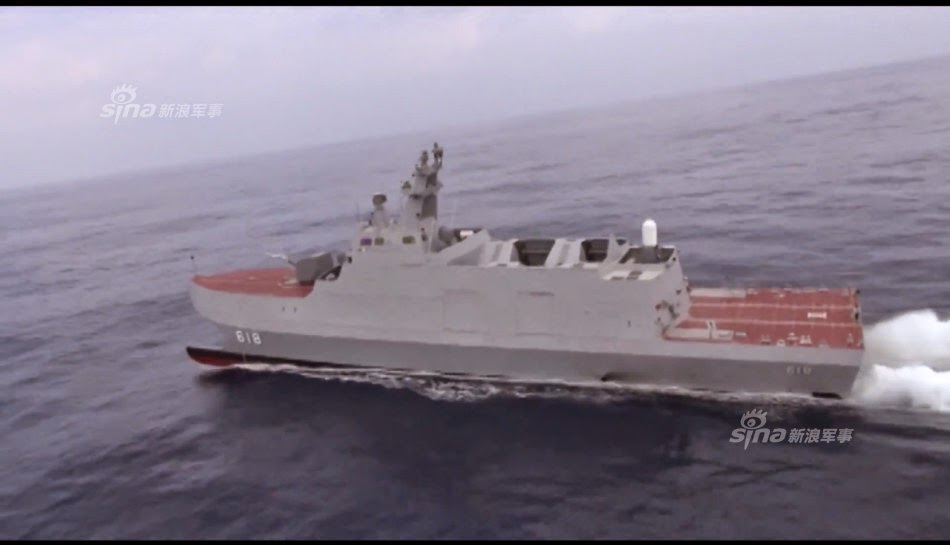

http://3.bp.blogspot.com/-5OTsfoUjfPE/VImYcgZWNtI/AAAAAAAASyQ/48LX7AXgHYI/s1600/Photos%2Bof%2BTaiwans%2BHsun%2BHai-class%2Bcorvette%2BTuo%2BChiang%2Baka%2BCarrier-killer%2Bsea%2Btrials%2B3.jpg

http://i1.wp.com/news.usni.org/wp-content/uploads/2014/12/TaiwanCorvette3.jpg?resize=625%2C352

http://4.bp.blogspot.com/-I5owiDA5hr4/T_cGZ6CbdxI/AAAAAAAAAfY/0oPRR07zmh4/s1600/Hughes500MD.JPG
