1. Depicts the device 9 (radar blocker) and 2. shows the place of the cross section.

If this is accurate, it would seem to me that the blocker is right in front of the engine.

Cool. Thanks for that.

Any idea which prototype will have it installed first?

In the long term, China knows the limitations of a ski-jump for a big aircraft. they know the failures of the su-33. thats why they are trying to eventually build up to a catapult system. but this may take time

The J-15 will work fine with a ski-jump. The main need for a catapult is to launch carrier based fixed wing AEW. Unlike the Kuznetsov-class, the Ulyanovsk-class would have had a ski-jump and 2x catapults to launch Yak-44 AEW. It appears that the Project 23000E will also have similar arrangement. Ski-jump for naval T-50, em-cats for fixed wing AEW. If there was only a ski-jump, then those carriers will be limited to Helo based AEW like the Z-18J or Ka-31.

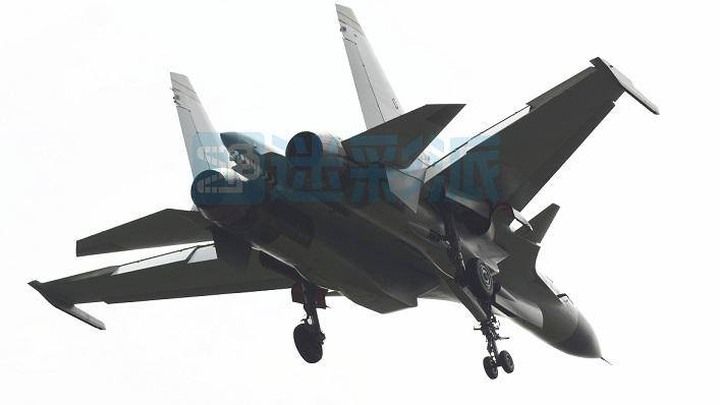

J-15A (a.k.a J-15T CATOBAR variant): http://chinese-military-aviation.blogspot.com/p/fighters-ii.html#J-15

…

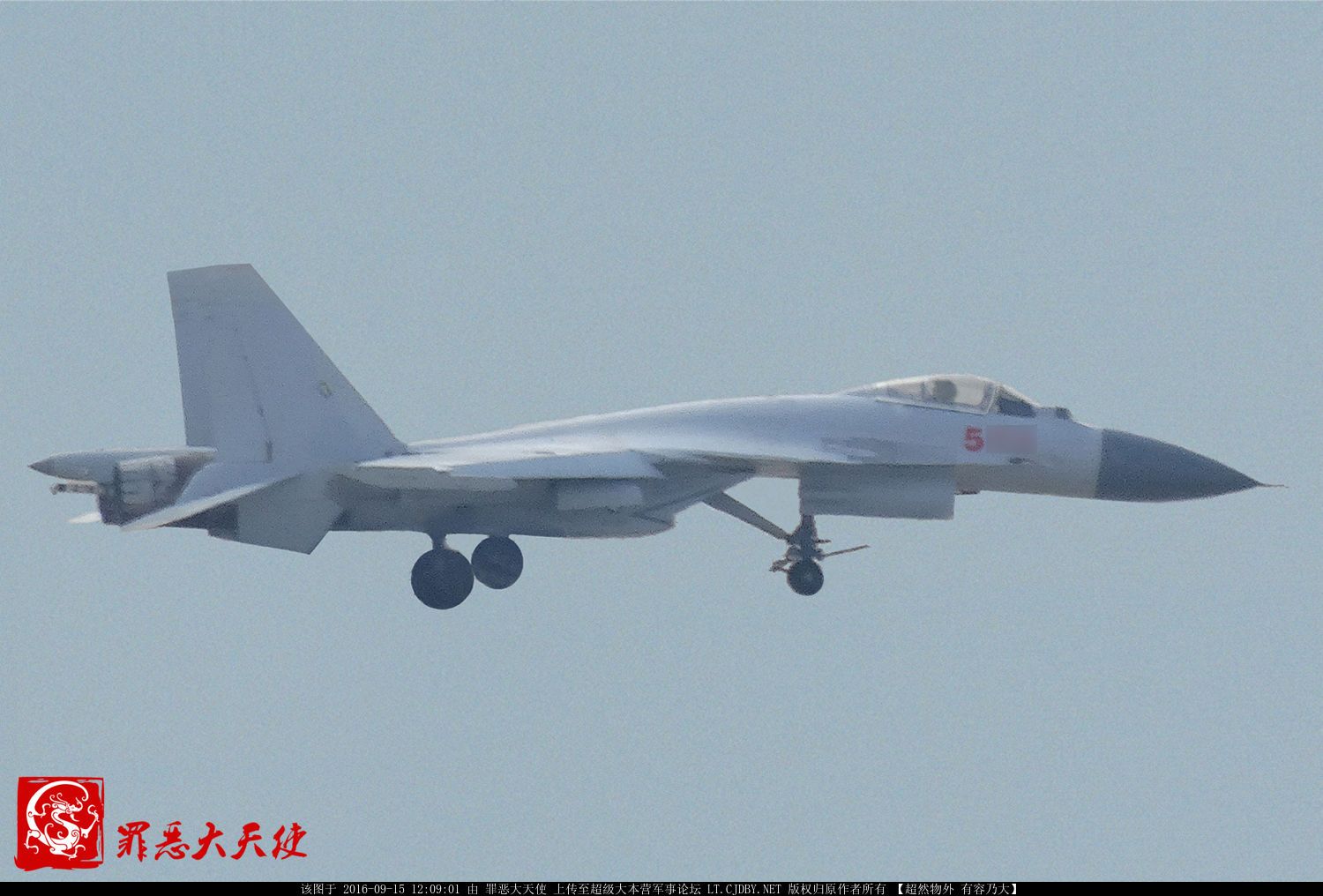

It was rumored in July 2016 that a prototype of the CATOBAR variant (J-15A? #5xx) just for the first time, powered by two indigenous WS-10H engines. An AESA radar might have been installed as well.

Zambia
…

few more ZAF L-15 photos:

[ATTACH=CONFIG]248191[/ATTACH]
[ATTACH=CONFIG]248188[/ATTACH]
[ATTACH=CONFIG]248189[/ATTACH]
[ATTACH=CONFIG]248190[/ATTACH]

Its a “Banana Duct”

A folding fin missile is probably needed. They probably require ASRAAM/A-Darter, or that proposed K-30 like missile. In-fact shorter version of the folding-fin R-77 could fit.

Link – Full Size
