Apologies for the size

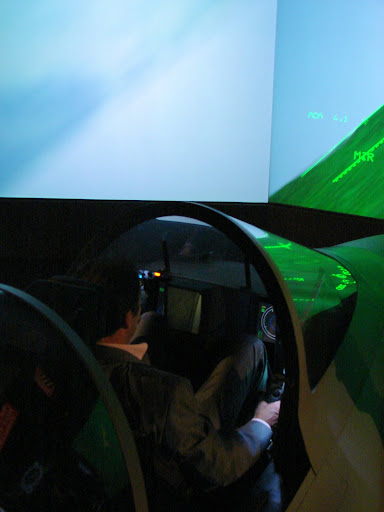

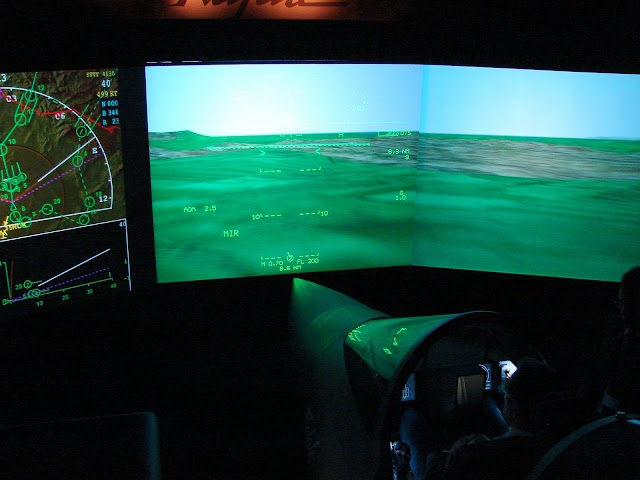

Taken from: http://picasaweb.google.com/johan.blondelle/LeBourget2007#5080434464838510450
There are definite similarities – look at the yoke, but the sliding canopy (though maybe that just aids access to the simulator) and the flat surface makes me wonder and there are other differences
I’m going to take a wild stab and say that flat surface under the front glass curves around at the front to house the IRST.
Can’t be long now till we see the whole thing – the speculation is fun, I’m doing line drawings to try and figure out the layout
We’re sure it’s not a boxy yak-130 simulator? 🙂
Looks like a very large cockpit – if representative it could speed along the twin seat variety.
Can we infer anything about the layout of the aircraft itself from the way the canopy slides back, rather than hinges back or to the side, on the simulator?
*edit, from goofing around on a piece of paper in front of me – it roughly goes along with the Pop Mech drawing of the hump back behind the cockpit, but much more of that hump appears to form part of the cockpit on the simulator, and overall seems more streamlined.
I’m particularly interested in that flat surface beneath the front glass
I’d have to go for “Enigma” 🙂
Beautiful pics indeed.
I know people go on about flaming on this forum (and it certainly happens) but 5 minutes on that one and my eyes started to bleed at some of the things being said.
God damnit, couldn’t the US NRO at least give us a grainy satellite photo of this rollout? 😀
After all this time, I finally notice the right tail pod goes further aft than the one on the left
Is it envisaged that any of these MSNx test aircraft will eventually serve with Air Forces?
Anyways, back on topic, I have heard good things about the Bison+ECM combo. However, the Bison still of course has a radar and afterburners. Another thing you might find interesting is the PZL-230 Skorpion (which was a cancelled Polish ground attack aircraft). Stealthy, don’t think it was going to include afterburners, and was optimized for low level flight.
You are of course spot on about the Bison having radar+ab. I threw out the specifications just to get discussion/debate going – no radar, no ab was just a cheap and dirty way to cut cost (and capability) with this speculative fighter, and give an example of what I had in mind. Every aspect of this is debatable and up for civilised discussion! 🙂
The F-35 is way beyond the specifications I suggested. Even if economies of scale do make it a relatively cheap fighter to procure (and that to me is a big if) it will still be a complex beast to maintain. I’m not doubting for one second it’s capabilities, but I regard it as beyond the scope of this discussion. Essentially I’m suggesting something as simple as a Mig 21 or F-5, but with inherent stealth characteristics. Not multi role, not tasked with deep strike or anything else, beyond defending home airspace.
If this aircraft is unmanned, to me that would imply bigger expense in R&D, compared to a conventional fighter possibly based on recycled pieces from existing programs. I’m not an expert so feel free to kick that supposition of mine to bits!
On the one hand, I see this as slotting in beside more capable aircraft in large air forces, but it would also offer a cheap air defence system to smaller nations.
And if it’s to be the sole Air Defence/Policing aircraft of a nation, then yes it would certainly require radar, be it a relatively simple+cheap Grifo, or something more complex
Sometimes I think corporations/individuals forgo the simpler solutions so they can be paid more for reinventing the wheel.
“Hey boss, here’s a design for an F-blah with a recessed bay and if we marry this to a new inlet and….”
“Sit down, Bob. Let me tell you about a little project we’re working on.. it’s called the JSF”
(I’m not anti or pro JSF, it’s just an example damnit!)
Some kind of cheap compossite detachable plates to cover the bay, probably, still if is reccessed then the aspect to get a decent return is limmited with or w/o plates/covers
I agree, this is the kind of cheap and easy solutions we are not seeing
The advantage of a hood you just blow off is exactly what you say – if the bay is recessed then the return is still low, so if you run out of them well it’s not going to matter much – you’re more likely to run out of things to shoot anyway.
Someone is going to come up with the “Keep it simple stupid” 4.5/5th gen fighter. Right now I suspect it will be China.
And if it’s widely exported, it’ll be a game changer.
This is the whole thing, how to make a cheap plane, how?, first -IMO- eliminate the closed bomb bay, design an open one with hidden ordenance.
Second a plane with AB, no need to be worried about IR signature, supercruiser does not offer IR stealth, thta’s not true, but then, running for conventional technology then is better to improve the AB technology rather than design more and more expensive turbines.
Going into a conventional airframe, max 15-10% of composites
Choosing a delta mirage2000 like airframe
The idea in my head about the bay is actually very simple –
An ordinary recessed bay but with a jettison-able hood- i.e. no fancy hydraulics. A few explosive bolts and you blow the lid off.. in an emergency where that doesnt work, the hood drops a scoop and the whole thing is torn off by the wind.
Obviously RCS would be affected once the hood is gone – but it will only be gone when you’ve hopefully already launched something at the bad guy.
2 minute job to replace on the ground
Cheers for the feedback so far, I decided to open a beer, or six, so best not reply now.
This was just an idea and I like that it hasn’t been completely shot down. The specs I gave are just pulled out of mid air, it’s more the idea of the aircraft i.e. it’s more specialised and has certain advantages at the cost of other abilities – to lower cost.
Just a quicky regarding the AB; I decided to mention that just for aircraft simplicity – I don’t actually know how many headaches an AB section actually adds to modern aircraft, but I doubt it’s critical. A lot of the ideas are arbitrary and completely open to debate, but the basis is:
a relatively cheap fighter aircraft, with inherent advantages over multirole 4/4.5 gen aircraft in the A2A role – at the cost of swing role/omni/multi/insert corporate talk here.
Great idea, but I would build it as an UCAV…
stealth does not make you invisible or invincible… So if you want to cut things from a modern manned fighter that costs money but also increases survivability, I think it would make sense to also remove the pilot.
Neuron?
It’s an interesting idea and makes a lot of sense.
I guess I’m still biased towards manned aircraft at this point. I have issues with regards to the varying degrees of autonomy these aircraft have –
For example if this is going to be controlled by someone on the ground, they have to transmit – and that’s a big glaring target for the first bombs in a conflict against a potent foe.
If this is a fully autonomous aircraft.. well the ROE are very interesting. Bad IFF and shoot? If I was going into conflict where the gloves are off, I’d be interested in studying whether it’s possible to spoof or jam IFF codes – what does an autonomous UCAV do then? If you’re not transmitting via active radar information and have a low RCS.. how does a totally autonomous UCAV identify you as hostile?
I know I’m just a bystander and I’m sure these were the first things that crossed the engineers/developers minds and they have solutions.
I asked staff members Alenia to comment on the delay in the Pak-Fa 2010. They replied: “at least one photo, at least one press service!” No need to fly directly already! “
Otherwise you lose credibility.
Add: obviously I will fly with the Saturn Al-41 …
Credibility with who?
The two governments/military with a stake in this project are presumably being kept fully briefed and know the problems.
I don’t think the Russians could give a damn if they lose credibility with anyone else, and why should they.
That being said, I do wish they had just kept their lips sealed instead of giving a constant stream of hopelessly inaccurate dates for first flight. In their position, I think a “Skunk Works” policy would have been best – tell no-one anything until the things ready/necessary.
