August 14, 2014 at 6:45 am in reply to: Looking for Hawker Aircraft Ltd. Drawing #908140

Jag248rpa
Participant

Thought I’d bump this thread up to the top one more time as I’m having no joy.

In addition to Hawker Drawings B.76323 and B.76318, I’m also looking for the drawing for Former #2 (windscreen hoop) C.97888. These drawings are to be used for the static restoration of a CCF-made Hurricane Mk XII. I have other drawings from which to trade.

Cheers,

Ron

June 17, 2014 at 6:51 pm in reply to: Hawker Hurricane Instrument Panel Help Please #886213

Jag248rpa
Participant

Ross,

By any chance would you have the Hawker drawings for the instrument panel support? This would be the horizontal tube and the hoop that is former #1?

Thanks,

Ron

June 15, 2014 at 2:37 am in reply to: Hawker Hurricane Instrument Panel Help Please #888674

Jag248rpa
Participant

Perfect. My drawings now completely readable. And thank you for explaining the difference between the Types!

R

June 14, 2014 at 9:48 pm in reply to: Hawker Hurricane Instrument Panel Help Please #888835

Jag248rpa
Participant

One last question about the drawing….

The material is 16 G Light Alloy. What is the specification in the next box?

Cheers,

Ron

June 14, 2014 at 8:35 pm in reply to: Hawker Hurricane Instrument Panel Help Please #888932

Jag248rpa
Participant

“SWITCH ON
BEFORE TAKING OFF”

This is a Canadian panel but the label is the same. What’s the difference between Type A and Type C? Was there a Type B and where was it used?

Cheers,

Ron

June 14, 2014 at 6:36 pm in reply to: Hawker Hurricane Instrument Panel Help Please #889086

Jag248rpa
Participant

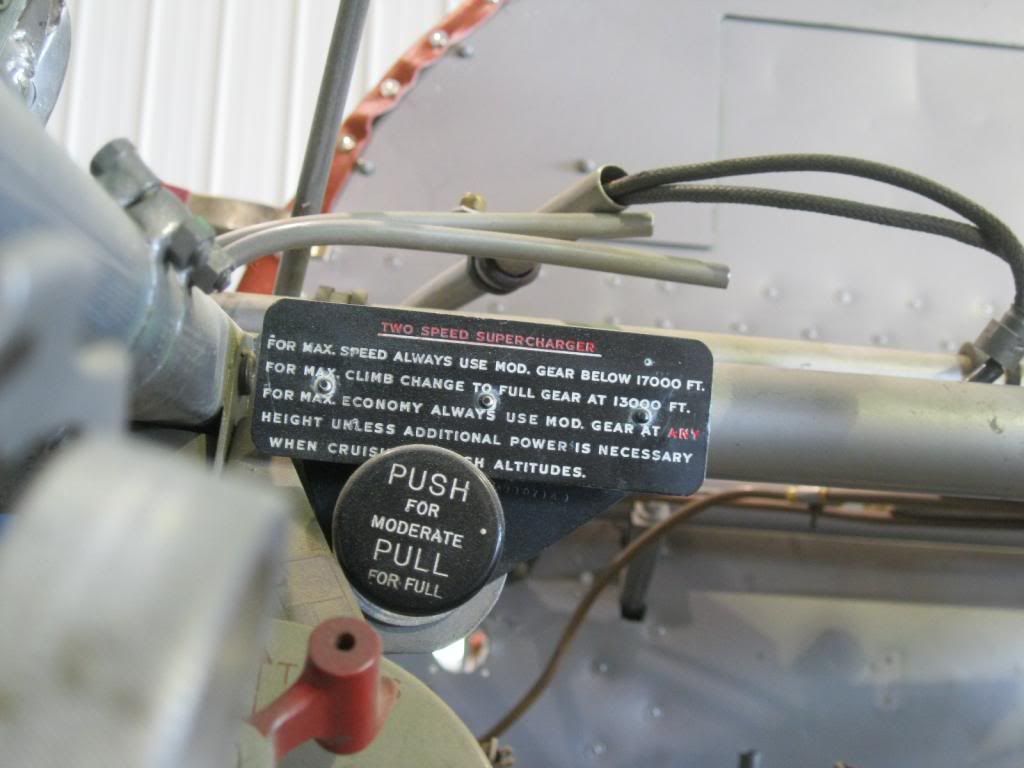

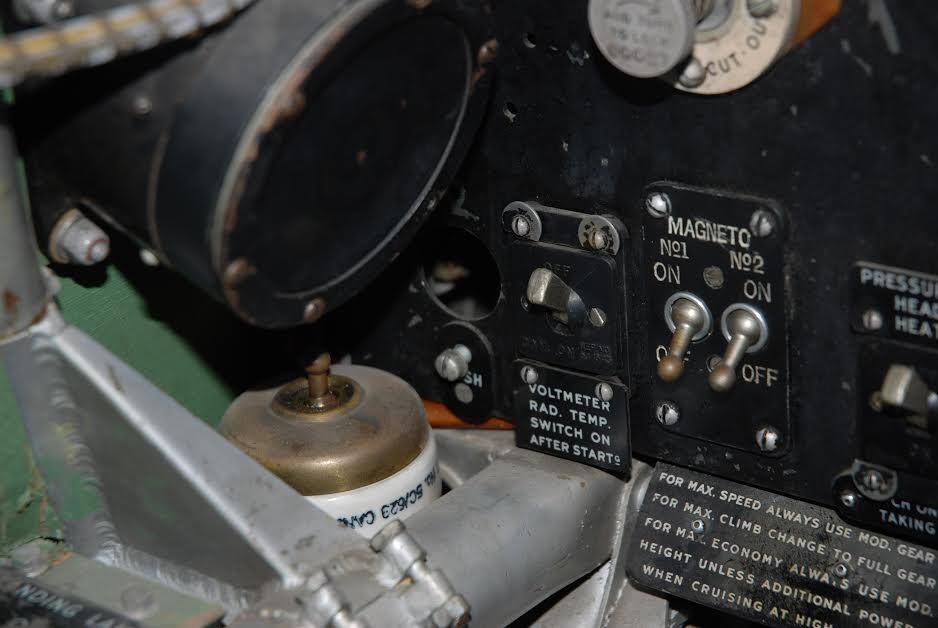

These photos may help.

Ron

June 14, 2014 at 5:30 pm in reply to: Hawker Hurricane Instrument Panel Help Please #889090

Jag248rpa
Participant

Wow! That’s a huge help Ross. Thank you so much.
What gauge of material are you using for the labels? And is it black anodized alloy?

Cheers,

Ron

June 5, 2014 at 3:27 pm in reply to: Looking for Hawker Aircraft Ltd. Drawing #897206

Jag248rpa
Participant

Received a very nice response from Brooklands but they do not have the drawings that I’m looking for. So I’m still searching for B.76323 and B.76318 for the Hawker Hurricane.

Thank you

June 1, 2014 at 11:09 pm in reply to: Looking for Hawker Aircraft Ltd. Drawing #900119

Jag248rpa
Participant

Thank you for this suggestion. I’ve never had much luck with museums but I’ll ask and keep my fingers crossed.

Cheers,

Ron

May 16, 2014 at 9:35 pm in reply to: Lancaster Cockpit Lamp Restoration #916644

Jag248rpa
Participant

The lighting gels work great. This restoration is going much easier than I thought.

Thank you 🙂

May 5, 2014 at 8:23 pm in reply to: Hurricane Gunsight Mount Identification #926022

Jag248rpa
Participant

That would be great. Let me see if I can get more pictures taken from RCAF 5447.

April 29, 2014 at 12:07 am in reply to: Hawker Hurricane Part Identification #928772

Jag248rpa
Participant

Great pictures, Tony. I’ve learned something more about the C joint from them. I did not realise that more than former #1 attaches to this piece. Thanks for sharing.

Ron

April 28, 2014 at 2:38 pm in reply to: Hawker Hurricane Part Identification #928959

Jag248rpa
Participant

Thank you Tony. I very much appreciate the time you’ve taken to source the name. Yes, a photo would be great too.

Cheers,

Ron

April 26, 2014 at 6:32 pm in reply to: Hawker Hurricane Part Identification #929584

Jag248rpa
Participant

Thank you Tony. I’ll source a copy of the parts manual.

Ron

April 25, 2014 at 8:25 pm in reply to: Hawker Hurricane Part Identification #929760

Jag248rpa
Participant

Surely someone must know the name Hawker Aircraft gave to this part?????

Thx
