September 28, 2010 at 8:06 pm in reply to: (Non-Mossie?) Parts ID #1127747

HR339
Participant

Bump……

September 27, 2010 at 7:57 pm in reply to: Recovered today from airfield dump #1129356

HR339
Participant

I’m racking my brains to remember what it looks like, but I have an idea that there is an assembly similar to the one in the middle-bottom of the first picture (appears to have a universal joint) that operates the 4 way fuel c0ck in the engine nacelle of the Mosquito. I’ll have a look next weekend.

September 25, 2010 at 11:22 pm in reply to: (Non-Mossie?) Parts ID #1131730

HR339
Participant

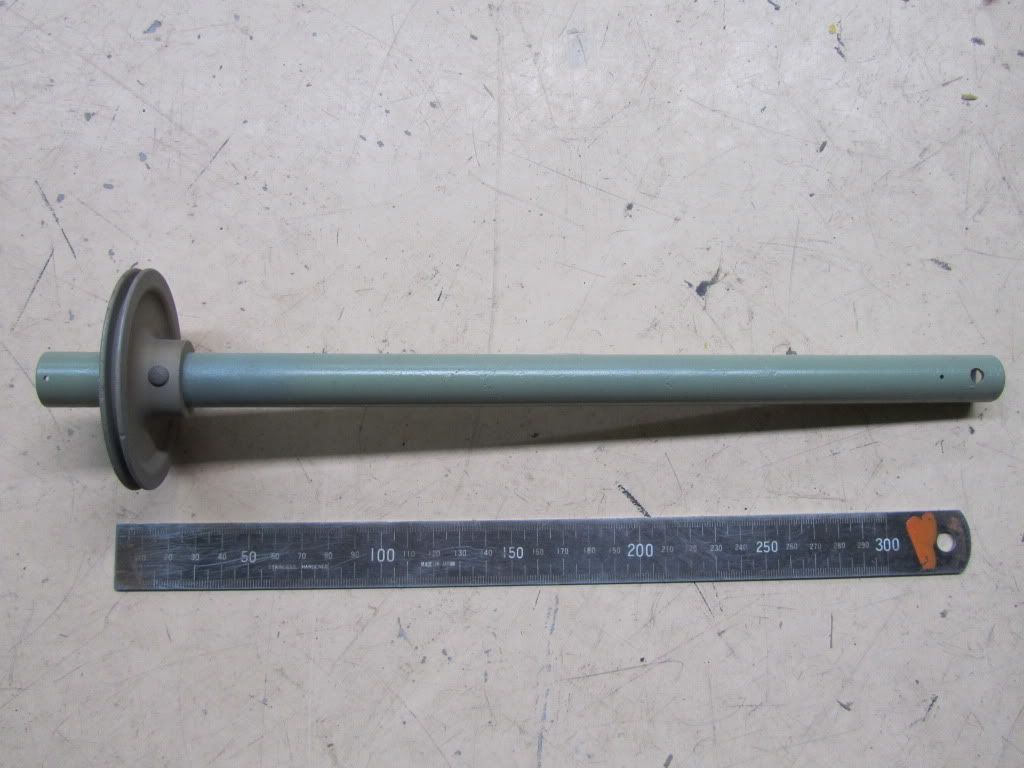

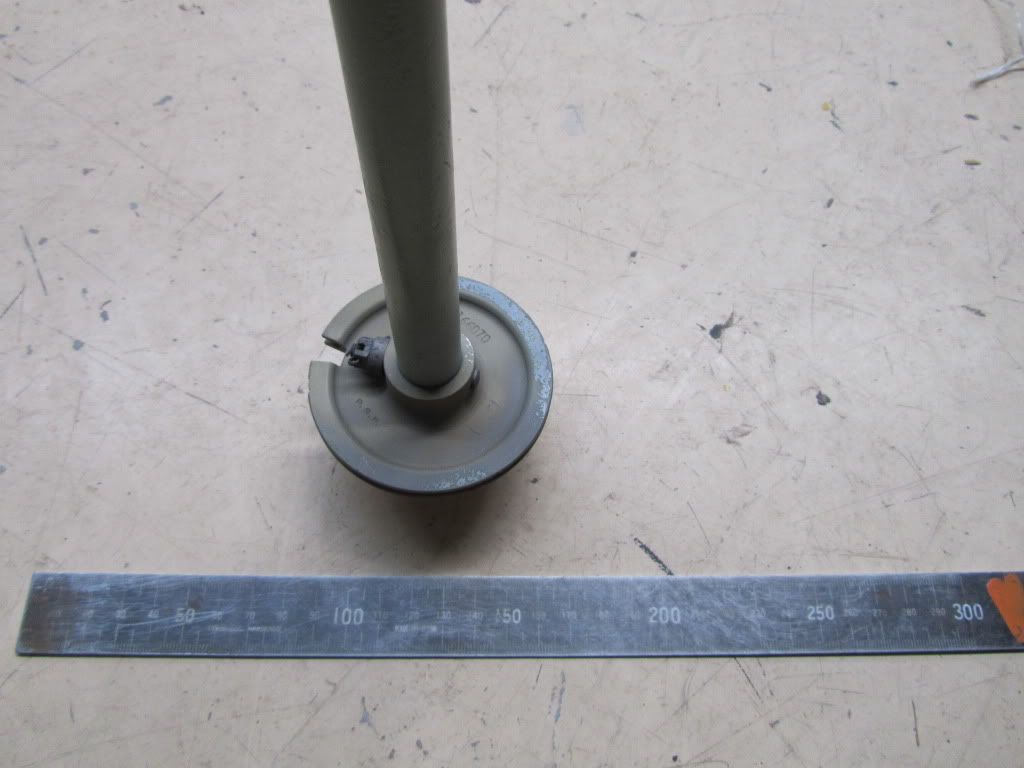

Finally, a tubular steel shaft with an alloy pulley mounted on it. The pulley is notched to take the end of a cable, and is stamped 166070 and P.S.P. The shaft has an outside diameter of ~19mm and a length of ~360mm, and the pulley has a diameter of 76mm.

There quite a few more, but I don’t want to be greedy. Answers on the back of an envelope to…

September 25, 2010 at 11:19 pm in reply to: (Non-Mossie?) Parts ID #1131744

HR339
Participant

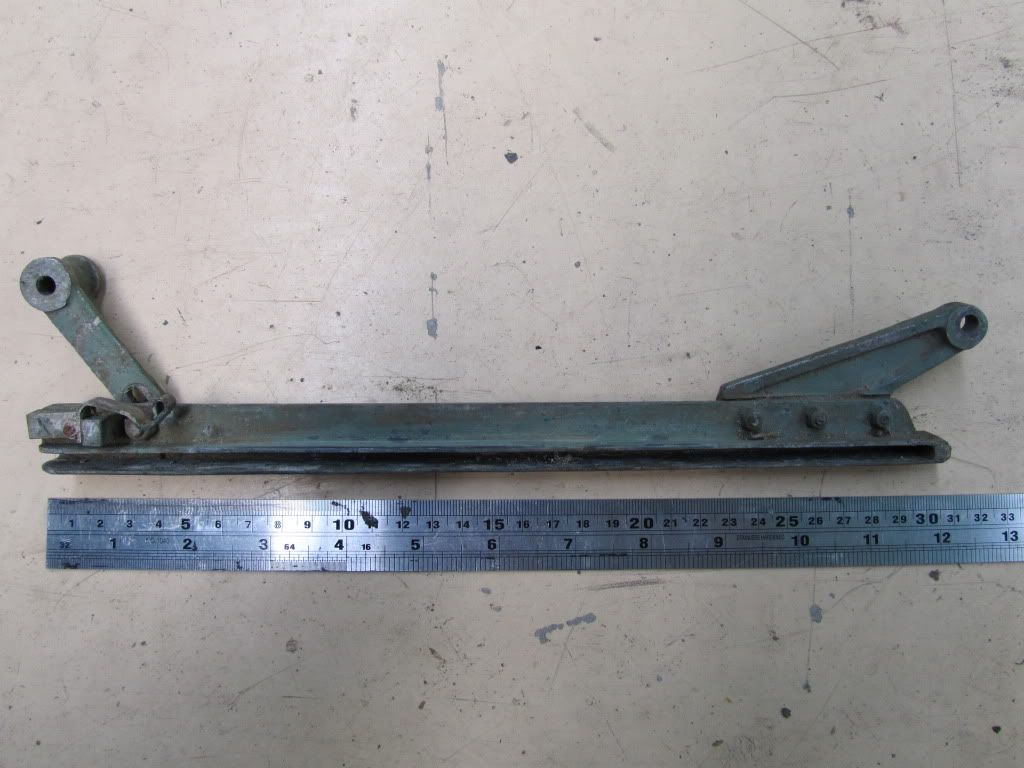

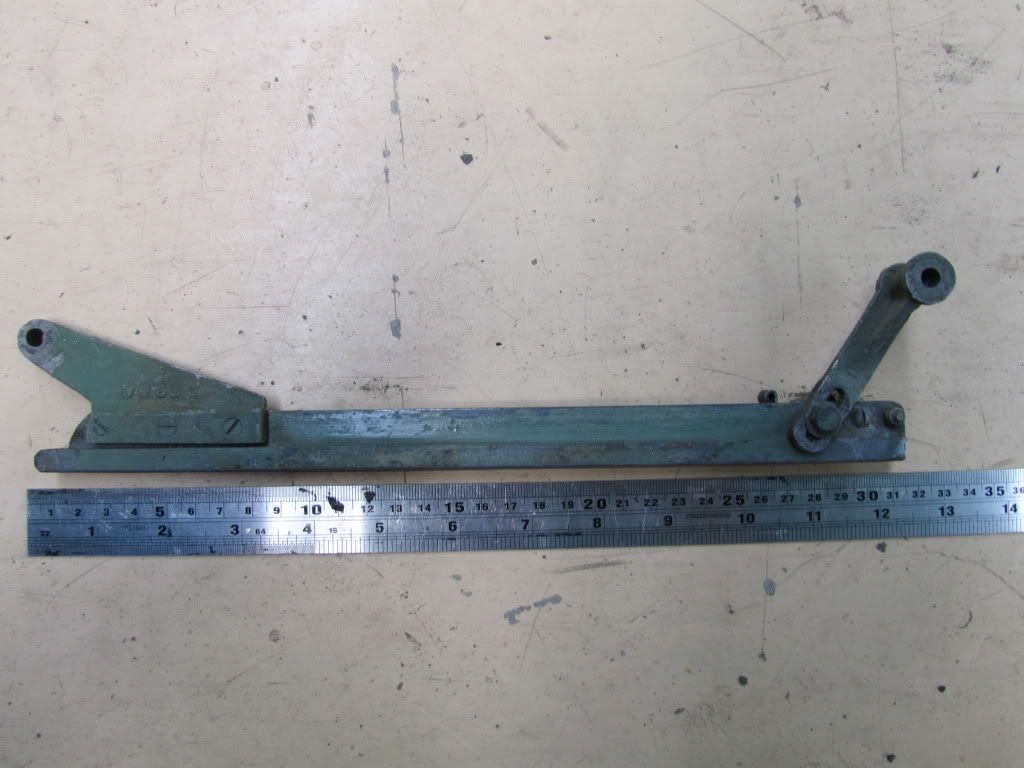

The next is 3 alloy castings, one of which is stamped WW68. There is a spring-steel catch attached to one side, and one of the castings is slotted and slides freely. The whole affair is about 300mm long. And we appear to have two of them.
